Operation

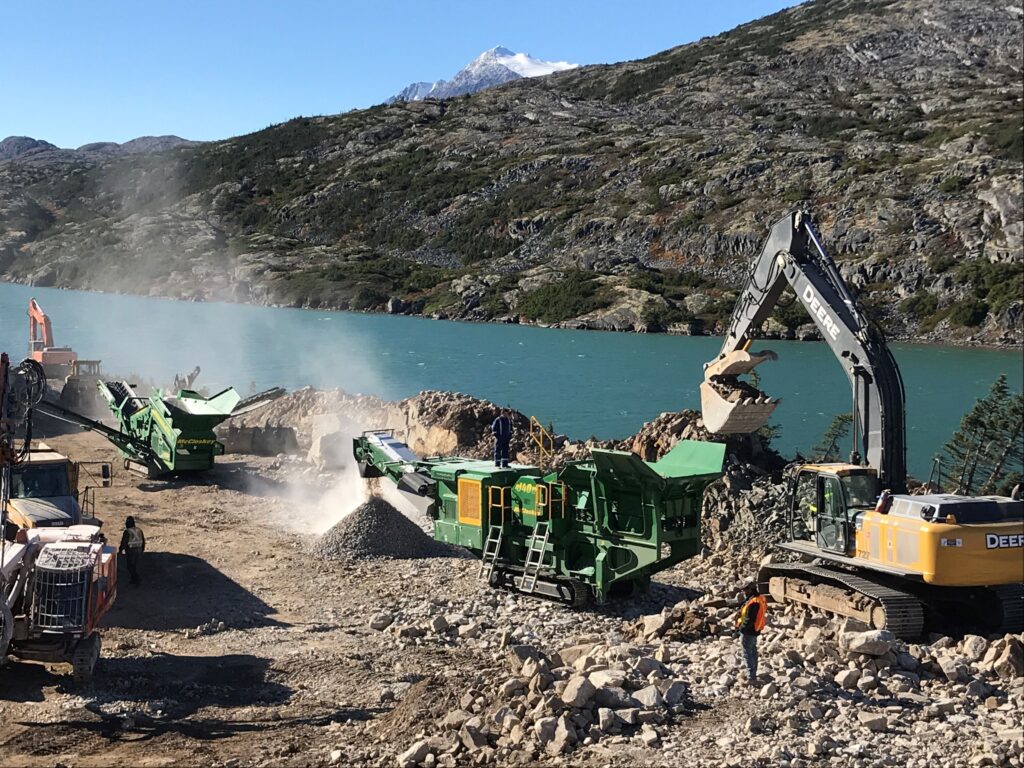

Discover the advanced McCloskey J40v2 jaw crusher. Equipped with a fuel-efficient 225 hp CAT C6.6 engine, a 1016 mm wide jaw and a user-friendly control panel with advanced machine diagnostics, the J40 offers contractors a highly mobile solution to meet their production expectations. With a width of only 2.5 meters, this machine is ideal for applications requiring a high degree of mobility.
The J40 retains the essential values expected of a McCloskey jaw crusher, including high capacity. This tracked mobile machine is designed to handle heavy-duty work.
Technical characteristics J40V2
- Engine power : 225 hp (166 Kw) Tier III CAT C6.6 engine
- Feed opening: 1016 mm x 610 mm
- Grizzly feeder: width: 950 mm / length: 3840 mm
- Hopper volume: 5.4 m³
- Stockpile height main conveyor: 3458 mm
- Stockpile height of side conveyor: 2500 mm
Transport
- Transport height: 3.2 m
- Transport length: 13.78 m
- Transport width: 2.5 m
- Weight: 36,940 kg
